AC Wallbox Pro Power 22kW Type 2 Socket LAN/WiFi/4G/RS485/RFID/OCPP/ModBus/MID +Backend

Description

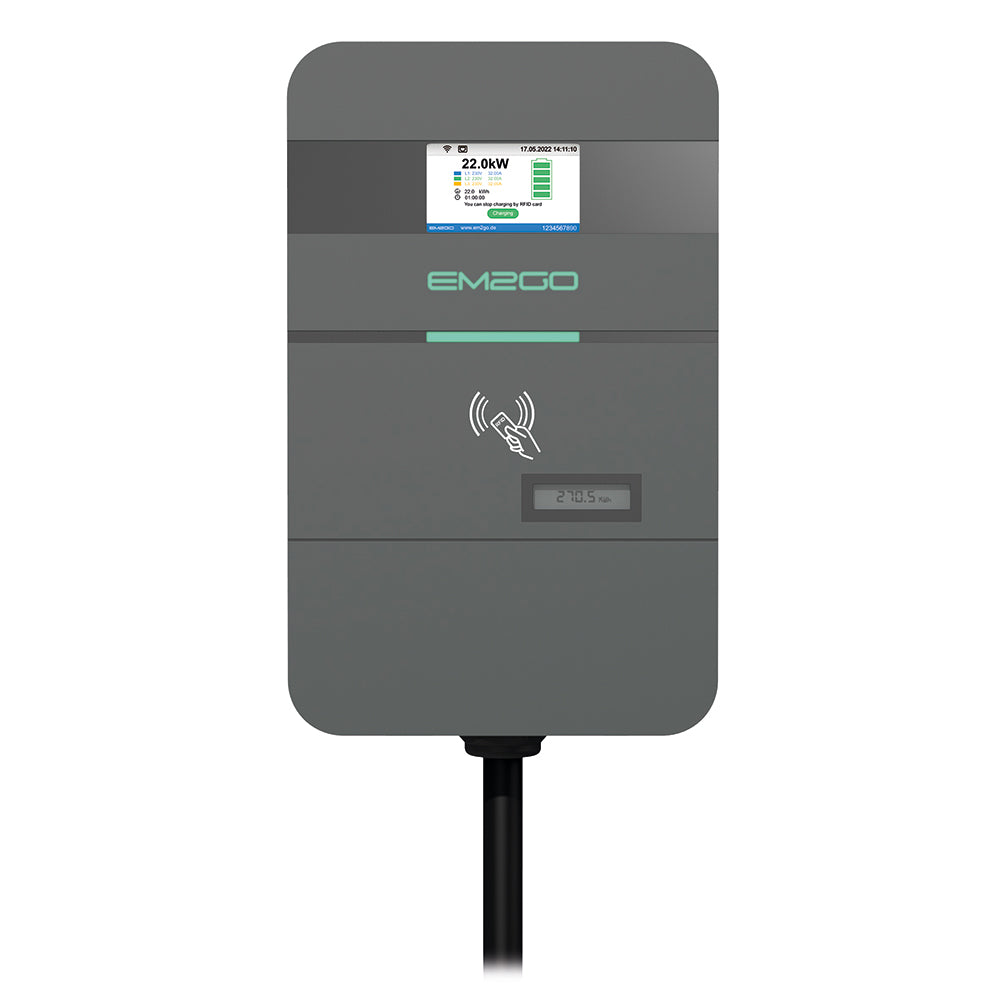

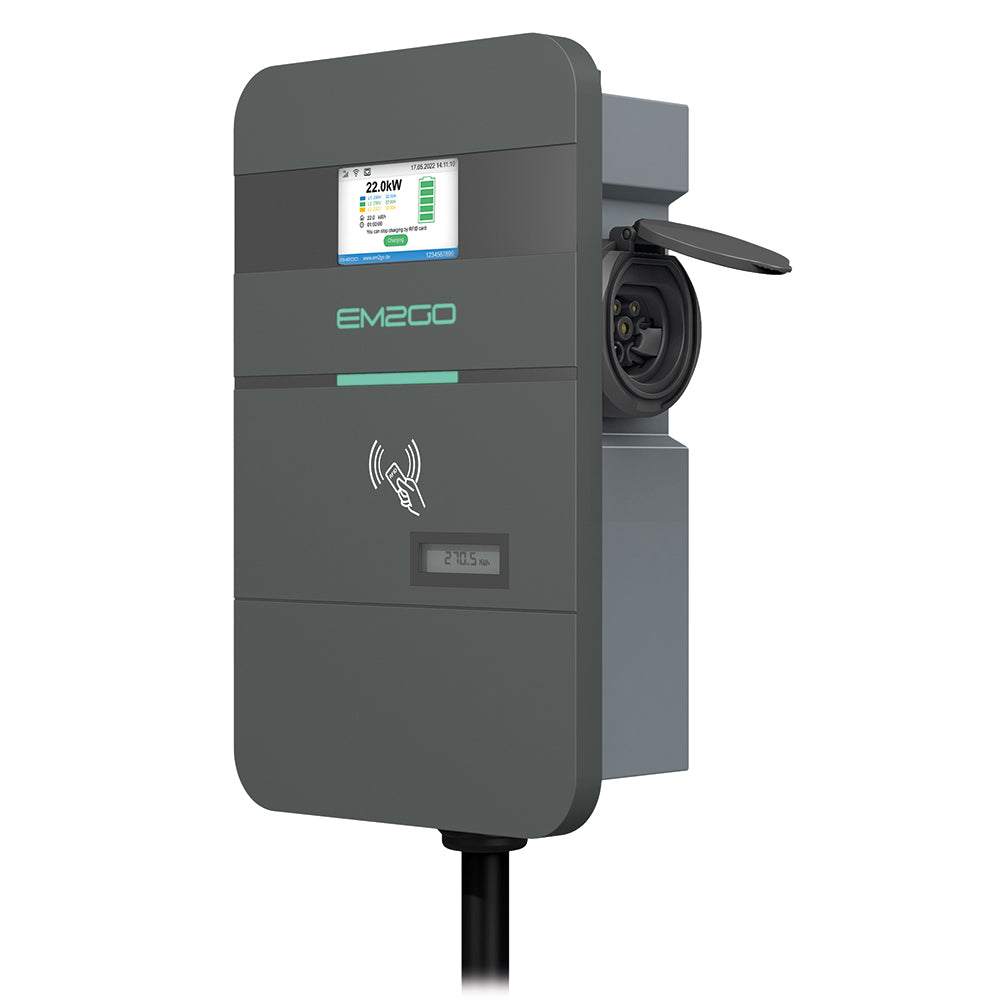

With this 3-phase EM2GO EV charging station with type 2 socket, you can charge your e-vehicles safely and quickly with up to 22 kW power. The EM2GO Wallbox with intelligent control has a variety of communication interfaces for backend control. With the cellular modem, secure mobile data transmission is possible via EDGE, 3G or LTE/4G with appropriate SIM card. Multiple wallboxes can be interconnected with local load management to share available power. The wallbox is equipped with an integrated energy meter (MID) to perform tamper-proof and
kilowatt-hour accurate billing. The wallbox has an RFID card reader. The built-in all-current sensitive residual current unit (RCMU) protects against fault currents during a charging process. The 4.3 inch color display informs you about the current state of charge, charge voltage, current and power during the charging process. An LED band indicates the status of the wallbox and informs about the proper charging process.
The EM2GO EV charging station is equipped with intelligent electronics. So your vehicle is well protected against over/under voltage, fault currents, short circuits and high temperatures. The integrated safety lock on the back of the wallbox allows easy installation and protects against theft.

The EV charging station is delivered together with the becharged dashboard. After registration, the charging station can be conveniently controlled and managed via the central dashboard, including APP. The becharged dashboard includes the overview of the charging station/user and the graphical evaluations of the charging processes. Transactions made can be exported for reporting purposes. Simple load management allows to limit the amount of electricity used by the charging station. Additional features, such as billing services can be enabled through value-added services in the becharged dashboard.

Technical Data:

  • Operating voltage: 400V AC ±10% , 50-60 Hz
  • Operating current: 32 Amps
  • Max. Output power: 1-phase 32A bis zu 7.4kW / 2-phase 32A bis zu 14.7kW / 3-phase 32A bis zu 22kW
  • Charging connection: Type 2 socket
  • Local load management
  • Integrated calibrated energy meter (MID)
  • Display: 4.3 inch LCD screen, LED band
  • Phase mode: 3 phases + N + PE
  • Interfaces: RS-485, Ethernet (RJ-45), WLAN (2.4GHz)
  • Integrated cellular modem (EDGE/3G/LTE)
  • Backend connection: OCPP standard 1.6-J (WS & WSS)
  • ModBus TCP support
  • Integrated RFID card reader
  • Safety: All-current sensitive residual current unit (RCMU), emergency stop button,  over temperature, over/under voltage, over current, grounding protection
  • Operating temperature: -30 to +55 °C
  • Housing: IP54 & IK10, splash-proof
  • Dimensions: 435 x 270 x140 (H×W×D)
  • Weight: 6 kg


AC Wallbox Pro Power 22kW Type 2 Socket LAN/WiFi/4G/RS485/RFID/OCPP/ModBus/MID +Backend

Product form

899,00€ Incl. VAT

SKU: EMN022AS0GMB-0
Barcode: 4024559263026

Delivery within 2-4 working days

    • Order with Klarna and pay within 30 days .

      klarna
    • Customer service and shipping from Germany
    • 10,000+ satisfied customers
    • First-class advice

    Downloads
    Datenblatt Download
    ModBus TCP Register Download
    EU-Konformitätserklärung Download
    Anleitung Download
    OCPP-Konfigurationsschlüssel-Liste Download
    Firmware V1.10 Download
    Eigenschaften

    EV-Ladegerät: Wall-mounted

    Anzahl Ausgänge: 1

    Bildschirmdiagonale (Zoll): 4.3

    Energiezähler: MID compliant

    Backend-Anbindung: OCPP 1.6-J

    BMK förderfähig (AT): Yes

    Lokales Lastmanagement: Up to 5 charging stations

    Höhe: 28.5cm

    Breite: 35cm

    Länge: 49cm

    Verpackung: Packed

    Leistung (W): 22000

    Anschlusstyp: Type 2

    WEEE-Reg. -Nr: DE 49512145

    Lieferumfang: User manual, 2x RFID cards (offline), 2x screws, Charging station, Mounting accessories, 1x RFID card (online)

    Verbindung: Wi-Fi, LTE

    Autorisierung: RFID, App

    Anzahl Phasen: 3

    Typ: Charging station for electric vehicles

    Eingangsspannung (V): 400

    Ausgangsspannung (V): 400

    Fehlerstromerkennung: AC 30mA + DC 6mA

    Description

    With this 3-phase EM2GO EV charging station with type 2 socket, you can charge your e-vehicles safely and quickly with up to 22 kW power. The EM2GO Wallbox with intelligent control has a variety of communication interfaces for backend control. With the cellular modem, secure mobile data transmission is possible via EDGE, 3G or LTE/4G with appropriate SIM card. Multiple wallboxes can be interconnected with local load management to share available power. The wallbox is equipped with an integrated energy meter (MID) to perform tamper-proof and
    kilowatt-hour accurate billing. The wallbox has an RFID card reader. The built-in all-current sensitive residual current unit (RCMU) protects against fault currents during a charging process. The 4.3 inch color display informs you about the current state of charge, charge voltage, current and power during the charging process. An LED band indicates the status of the wallbox and informs about the proper charging process.
    The EM2GO EV charging station is equipped with intelligent electronics. So your vehicle is well protected against over/under voltage, fault currents, short circuits and high temperatures. The integrated safety lock on the back of the wallbox allows easy installation and protects against theft.

    The EV charging station is delivered together with the becharged dashboard. After registration, the charging station can be conveniently controlled and managed via the central dashboard, including APP. The becharged dashboard includes the overview of the charging station/user and the graphical evaluations of the charging processes. Transactions made can be exported for reporting purposes. Simple load management allows to limit the amount of electricity used by the charging station. Additional features, such as billing services can be enabled through value-added services in the becharged dashboard.

    Technical Data:

    • Operating voltage: 400V AC ±10% , 50-60 Hz
    • Operating current: 32 Amps
    • Max. Output power: 1-phase 32A bis zu 7.4kW / 2-phase 32A bis zu 14.7kW / 3-phase 32A bis zu 22kW
    • Charging connection: Type 2 socket
    • Local load management
    • Integrated calibrated energy meter (MID)
    • Display: 4.3 inch LCD screen, LED band
    • Phase mode: 3 phases + N + PE
    • Interfaces: RS-485, Ethernet (RJ-45), WLAN (2.4GHz)
    • Integrated cellular modem (EDGE/3G/LTE)
    • Backend connection: OCPP standard 1.6-J (WS & WSS)
    • ModBus TCP support
    • Integrated RFID card reader
    • Safety: All-current sensitive residual current unit (RCMU), emergency stop button,  over temperature, over/under voltage, over current, grounding protection
    • Operating temperature: -30 to +55 °C
    • Housing: IP54 & IK10, splash-proof
    • Dimensions: 435 x 270 x140 (H×W×D)
    • Weight: 6 kg
